產(chǎn)品型號：?57靜音滾筒 R-5721NB
產(chǎn)品名稱：?57低噪音滾筒&滾筒輸送機
>>仕樣
| 滾 筒 幅 寬 W (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1,000 | ||
| 輸送機幅寬 W＋75 (mm) | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | 975 | 1,075 | ||
| 滾筒承重強度 (kg) | 240 | 210 | 180 | 150 | 118 | 98 | 88 | 80 | 70 | 60 | ||
| 輸送機重量 3,000L (kg) | 75P | 30.7 | 39.1 | 47.5 | 56.0 | 64.4 | 74.2 | 82.6 | 91.0 | 99.4 | 107.8 | |
| 100P | 27.0 | 33.4 | 40.0 | 46.3 | 52.7 | 60.5 | 66.9 | 73.3 | 79.7 | 86.1 | ||

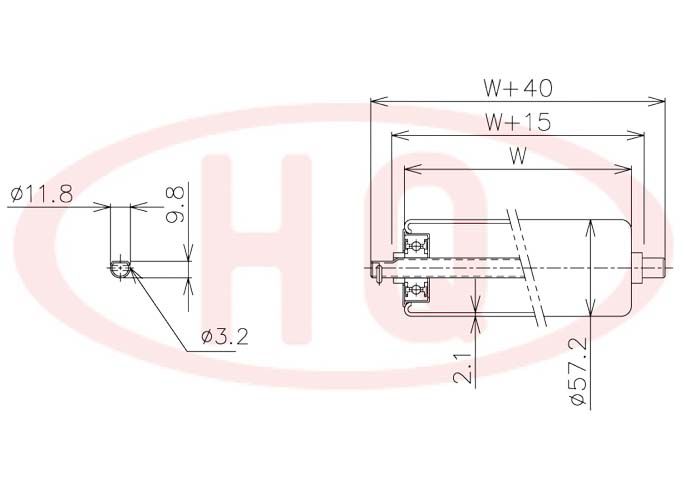

>>示意圖
